Encoder Micro Gearmotors

Micro geared motors with magnetic, Hall, or optical feedback for speed control, position monitoring, and closed-loop motion.

Target Buyer:For teams that need compact geared motion but cannot rely on open-loop timing.
Send RFQContact Engineering
Micro gearmotor with encoder module for feedback-ready assembly

Capability Highlights

  • Feedback-ready speed and position control
  • Custom cable and connector options
  • Useful for robotics, pumps, and instruments

Typical Applications

  • Robotics
  • Lab automation
  • Metering pumps

Engineering Focus

  • Encoder resolution and signal type
  • Cable shielding and connector pinout
  • Controller compatibility

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Feedback architectureHall, magnetic, and optical feedback paths should be matched to speed, position, and controller needs.Required PPR/CPR, signal type, supply voltage, and controller input format.
Motor and gearbox matchThe feedback device must match the motor speed range, gear ratio, and position accuracy target.Output torque, loaded speed, ratio, and acceptable position error.
Cable and connectorCompact devices often need custom pinout, shielding, cable length, and strain relief.Pinout, connector series, cable length, shielding need, and routing path.
Control environmentSignal integrity should be checked against nearby drivers, boards, batteries, and metal enclosures.Driver model, MCU/controller interface, PWM frequency, and enclosure notes.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
N20 encoder gearmotor12mm gearbox class3-12V review1:5-1:1000 review10-1000 RPM selection windowCompact actuator loadsHall or magnetic encoder reviewPinout and shaft drawing by RFQ
Planetary encoder gearmotorCoaxial 8-42mm class3-24V reviewMulti-stage ratio reviewLow to medium speed closed-loop outputHigher torque density loadsHall / magnetic / optical reviewSTEP/IGES envelope by project review
BLDC Hall gearmotorCompact continuous-duty drive6-24V reviewGearbox pairing reviewDriver-controlled speed rangeContinuous-duty torque windowHall signals / encoder optionalDriver and pinout drawing by RFQ

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Signal integrity review

Buyer input

PPR/CPR, supply voltage, signal type, pull-up, cable length, shielding, and controller input.

Engineering output

Encoder architecture, pinout, cable, and sample waveform validation notes.

Product Evidence Pack

Request the right engineering files for Encoder Micro Gearmotors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Encoder Micro Gearmotors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Encoder type and CPR/PPR
  • Output speed and control mode
  • Cable length and connector
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Signal waveform, count stability, and direction verification with the buyer controller.
  • Loaded speed-control checks across the requested ratio and voltage.
  • Cable noise and routing review in compact electronic assemblies.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Feedback typeHall, magnetic, opticalDetermines controller compatibility and position accuracy.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Encoder board, magnet, sensor, CPR/PPR, and signal format review.
  • Custom cable length, connector, pinout, shielding, and strain relief.
  • Brushed DC, planetary, N20, or BLDC gearmotor pairing depending on control needs.
  • Connector labeling and inspection points for repeated production assembly.

Validation Evidence to Request

  • Signal waveform, count stability, and direction verification with the buyer controller.
  • Loaded speed-control checks across the requested ratio and voltage.
  • Cable noise and routing review in compact electronic assemblies.
  • Pinout and connector inspection before batch shipment.

RFQ Checklist

  1. Encoder type and CPR/PPR
  2. Output speed and control mode
  3. Cable length and connector
  4. Controller or driver interface

Risk Controls

  • Signal noise in compact devices: Review cable routing, shielding, connector, and pull-up requirements during sample planning.

Product Gallery

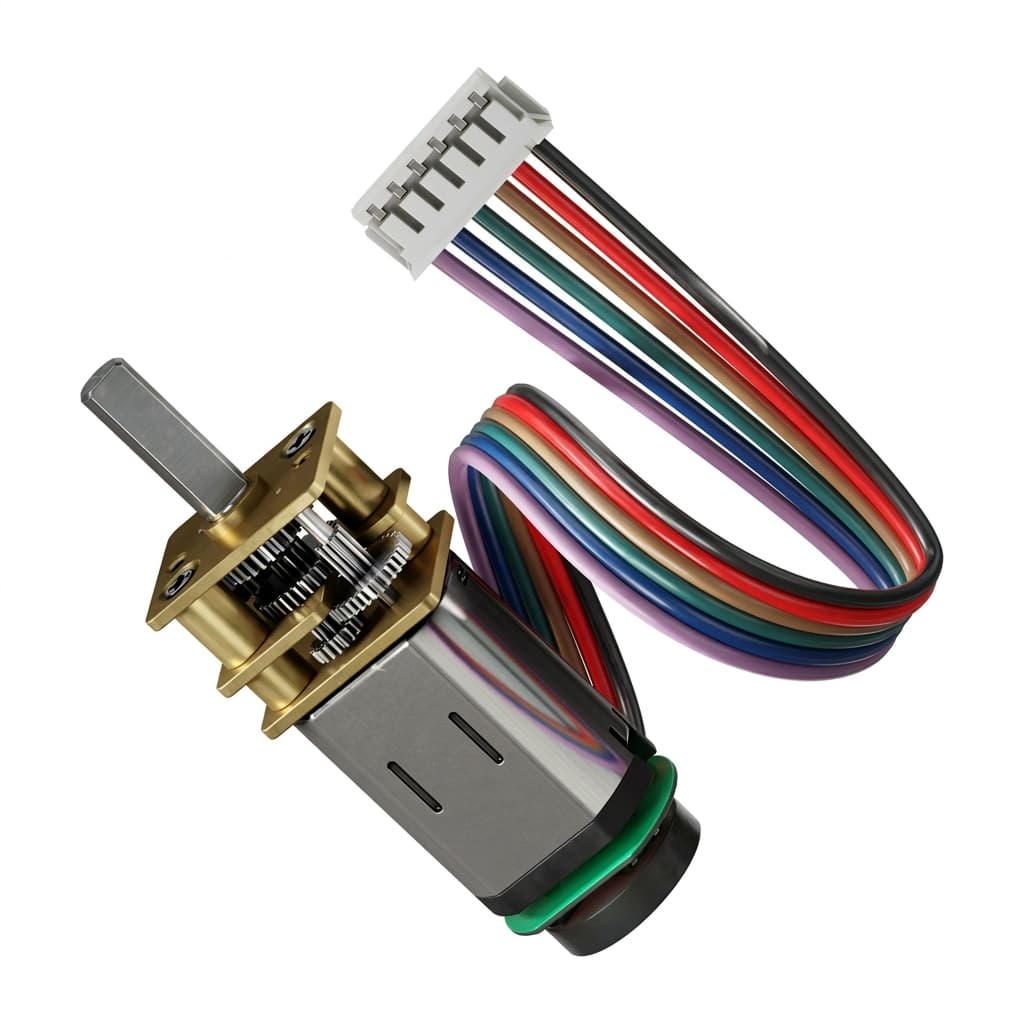

Compact geared motor with harness for encoder integration
Compact geared motor with harness for encoder integration
Precision micro gearmotor output shaft detail
Precision micro gearmotor output shaft detail

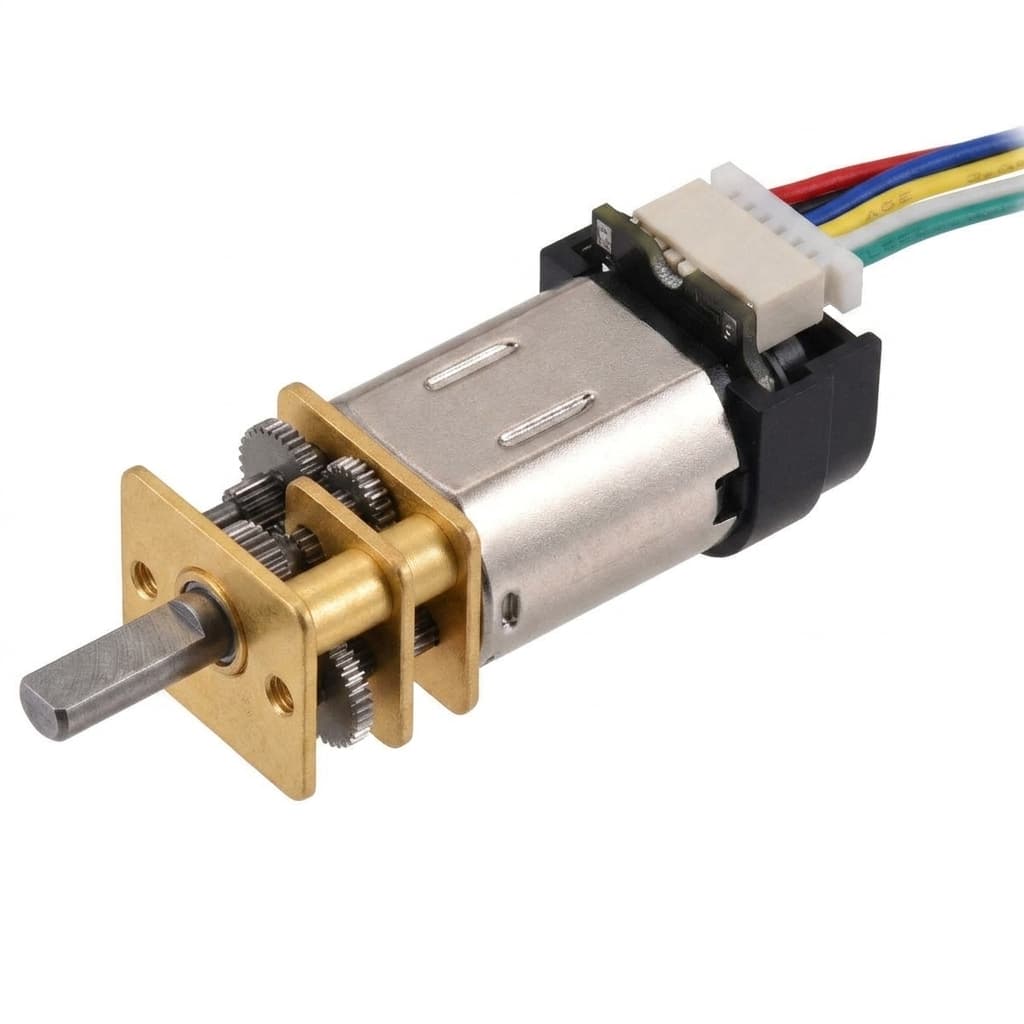

Small DC gearmotor with feedback wiring
