Micro BLDC Gear Motors

High-lifespan brushless DC micro gear motors for continuous duty and precision speed control applications.

Target Buyer:Ideal for engineering teams needing long life, continuous duty, and precise speed control over a long product lifespan.
Send RFQContact Engineering
Compact BLDC gearmotor housing

Capability Highlights

  • Long-life brushless design
  • Integrated or external drivers
  • High efficiency and low electrical noise

Typical Applications

  • Medical pumps
  • Industrial automation
  • Aerospace mechanisms

Engineering Focus

  • Controller integration
  • Thermal management for continuous duty
  • Rotor inertia and dynamic response

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Continuous-duty profileBrushless motors are suited to longer life when thermal margin and driver behavior are controlled.Duty cycle, life hours, ambient temperature, and serviceability limit.
Driver and controlIntegrated or external drivers need early review with the control signal and power budget.PWM/analog/control protocol, driver space, voltage range, and current limit.
Gearbox pairingPlanetary or custom gear stages are selected around speed range, torque, and noise target.Loaded RPM, torque, ratio preference, allowable noise, and package limit.
Feedback requirementHall or encoder feedback can be included when speed regulation or position monitoring is needed.Feedback signal type, resolution, connector, and controller interface.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
Compact BLDC planetary gearmotor16-28mm class6-24V reviewPlanetary gearbox pairing reviewDriver-controlled output speedContinuous-duty compact loadsHall standard review; encoder optionalMotor, gearbox, and driver drawing by RFQ
High-life instrument drive20-36mm class12-24V reviewEfficiency and noise balanced ratioStable low-to-medium RPMPump, instrument, and automation loadsHall / speed-control driver reviewElectrical interface drawing by RFQ
Integrated-driver geared BLDCProject-defined compact assembly12-24V reviewApplication-specificPWM / analog controlledThermal-margin dependentIntegrated driver signals by scopeDriver spec and connector drawing by RFQ

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Driver and protection behavior

Buyer input

PWM/analog command, startup load, current limit, stall behavior, and EMI constraints.

Engineering output

Driver pairing, wiring, and continuous-duty validation notes.

Product Evidence Pack

Request the right engineering files for Micro BLDC Gear Motors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Micro BLDC Gear Motors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Target RPM and Torque
  • Duty cycle and lifespan hours
  • Driver constraints (built-in vs external)
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Continuous-duty thermal rise check at the requested load point.
  • Driver startup, speed control, and protection behavior validation.
  • Life and bearing review for service-limited devices.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Lifespan10,000+ hoursCrucial for devices that cannot be easily serviced or require 24/7 operation.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Integrated or external driver matching for PWM, analog, or speed-control requirements.
  • Hall, encoder, harness, connector, and cable routing customization.
  • Planetary gear pairing for compact high-life speed reduction.
  • Thermal and insulation review for continuous-duty devices.

Validation Evidence to Request

  • Continuous-duty thermal rise check at the requested load point.
  • Driver startup, speed control, and protection behavior validation.
  • Life and bearing review for service-limited devices.
  • Noise and electrical behavior checks where electronics are sensitive.

RFQ Checklist

  1. Target RPM and Torque
  2. Duty cycle and lifespan hours
  3. Driver constraints (built-in vs external)
  4. Control signal (PWM, analog, etc.)

Risk Controls

  • Driver integration failures: Provide clear wiring diagrams, driver specs, and sample validation before mass production.

Product Gallery

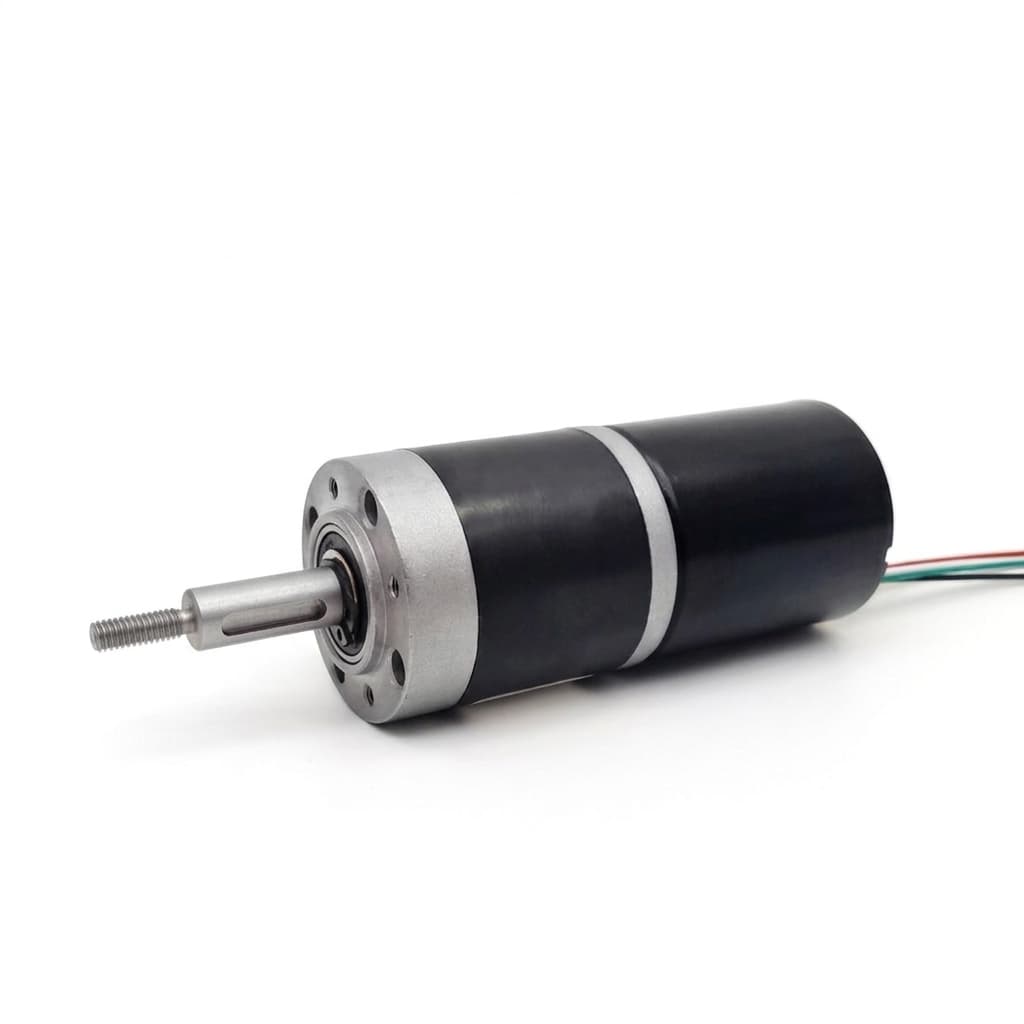

Brushless DC motor for geared drive integration
Brushless DC motor for geared drive integration
Brushless motor rotor and stator assembly
Brushless motor rotor and stator assembly

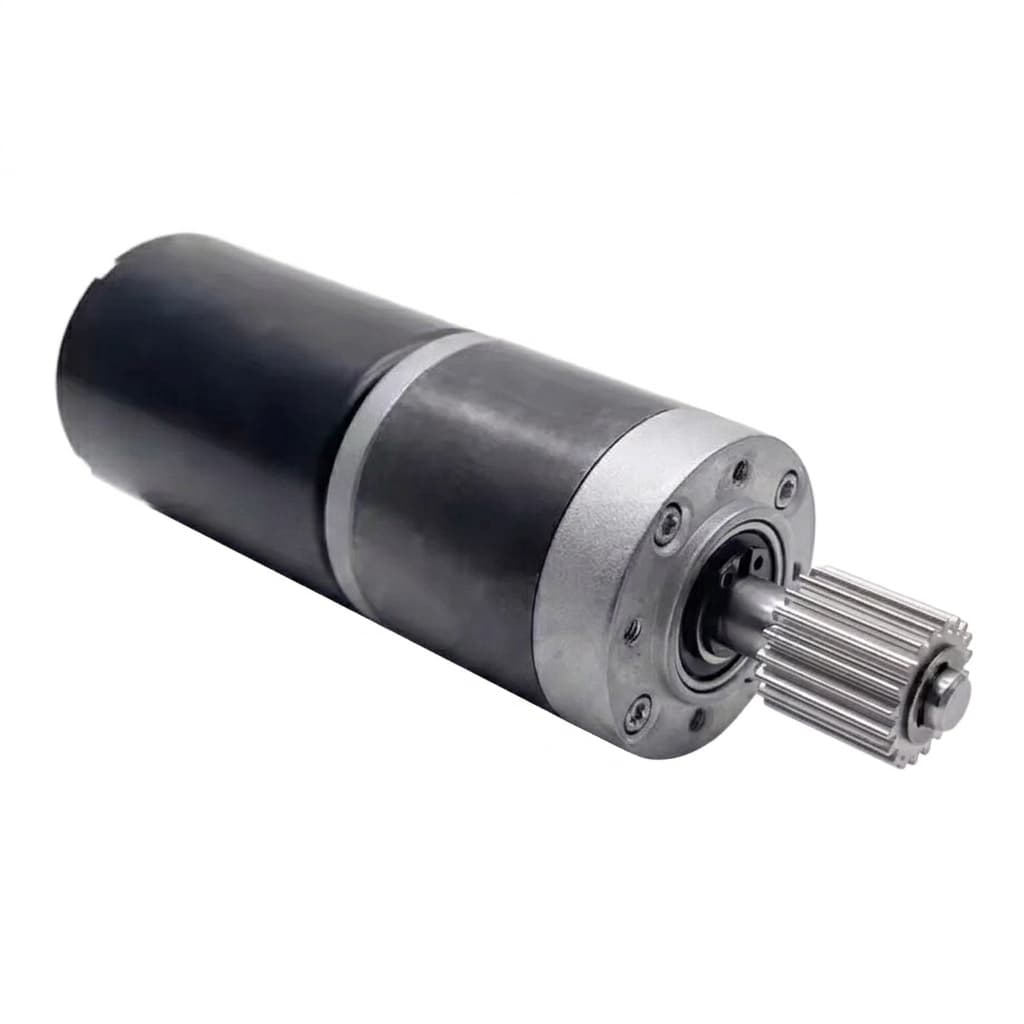

BLDC motor body for OEM gear drives
BLDC motor body for OEM gear drives

Buyer FAQ

Do you supply the motor driver?

Yes, we can provide motors with integrated drivers or recommend/supply external drivers matched to the motor.
