Micro gear motor product families for industrial OEM sourcing, from N20 and compact DC gear motors to planetary, worm, low-noise, and encoder-ready drive assemblies.
Use this page as a pre-RFQ navigator: pick the product family, capture the correct engineering inputs, and move directly to sample validation criteria that buyers can approve.
Need datasheet fields, CAD request scope, or a selection worksheet before choosing a product family?
Open Technical LibraryProduct Navigator
Narrow the portfolio by gearbox architecture, mechanical envelope, voltage range, and feedback path before opening a detailed RFQ page.
Custom brushed DC micro gear motors for compact mechanisms that need controlled output speed and higher torque.
Best for OEM teams that need a compact, economical geared motor with predictable delivery.
Miniature planetary gear motors for high torque density, coaxial packaging, and compact robotic or instrument drives.
Ideal for engineers who need coaxial output, compact OD, and higher torque than a bare motor can provide.
Right-angle worm micro gear motors for compact mechanisms that need self-locking behavior or perpendicular output.
Best for mechanisms where a coaxial gearmotor is too long or the load should resist back-driving.
Micro geared motors with magnetic, Hall, or optical feedback for speed control, position monitoring, and closed-loop motion.
For teams that need compact geared motion but cannot rely on open-loop timing.
High-lifespan brushless DC micro gear motors for continuous duty and precision speed control applications.
Ideal for engineering teams needing long life, continuous duty, and precise speed control over a long product lifespan.

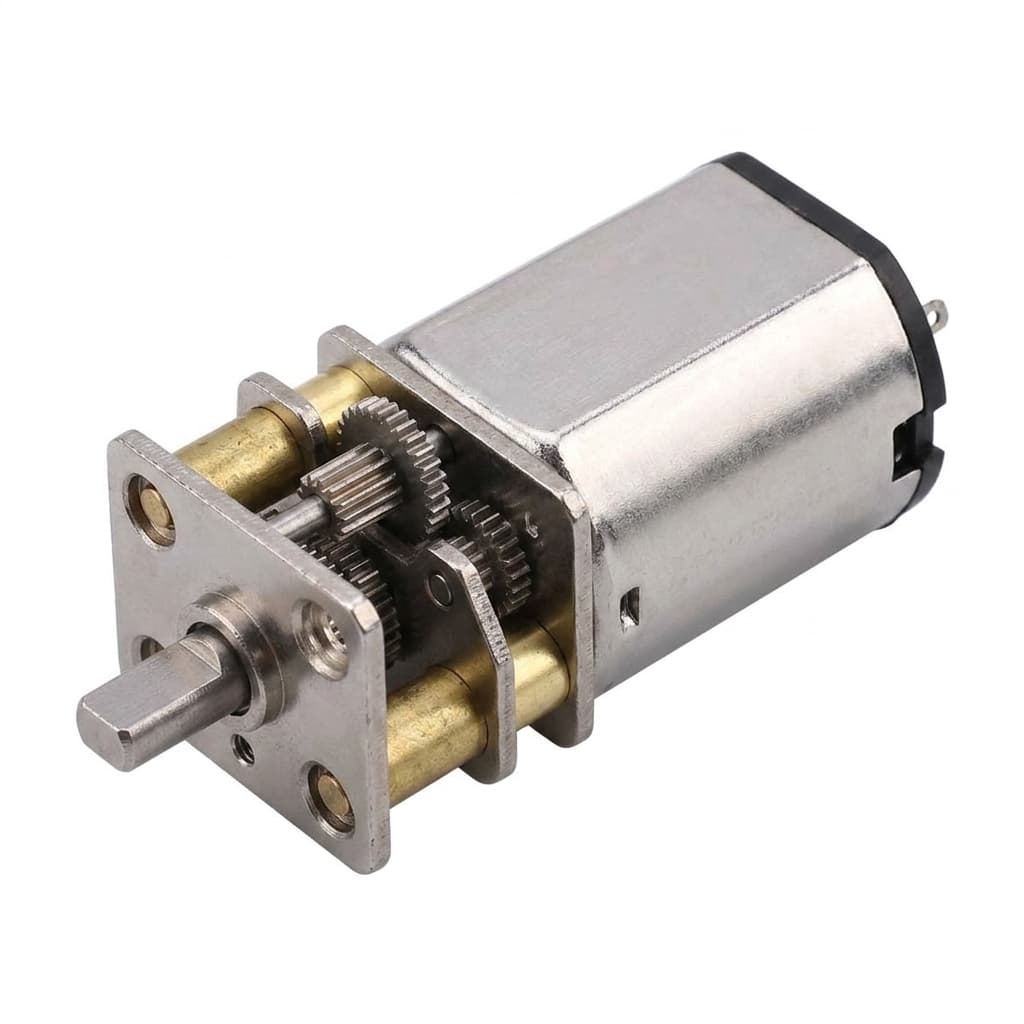

Cost-effective micro spur gear motors with offset output shafts, ideal for simple motion tasks and high-volume applications.
Best for procurement teams needing an economical geared solution where coaxial output is not required.
Right-angle geared motors using bevel or worm stages to redirect torque 90 degrees in tight mechanical envelopes.
For designers who have strict length constraints and must mount the motor perpendicular to the driven shaft.
Specialized micro gearmotors with a hollow output shaft, allowing cables, fluids, or other shafts to pass directly through the center.
For advanced mechanical teams designing gimbals, robotic joints, or optical systems requiring wire routing through the axis.

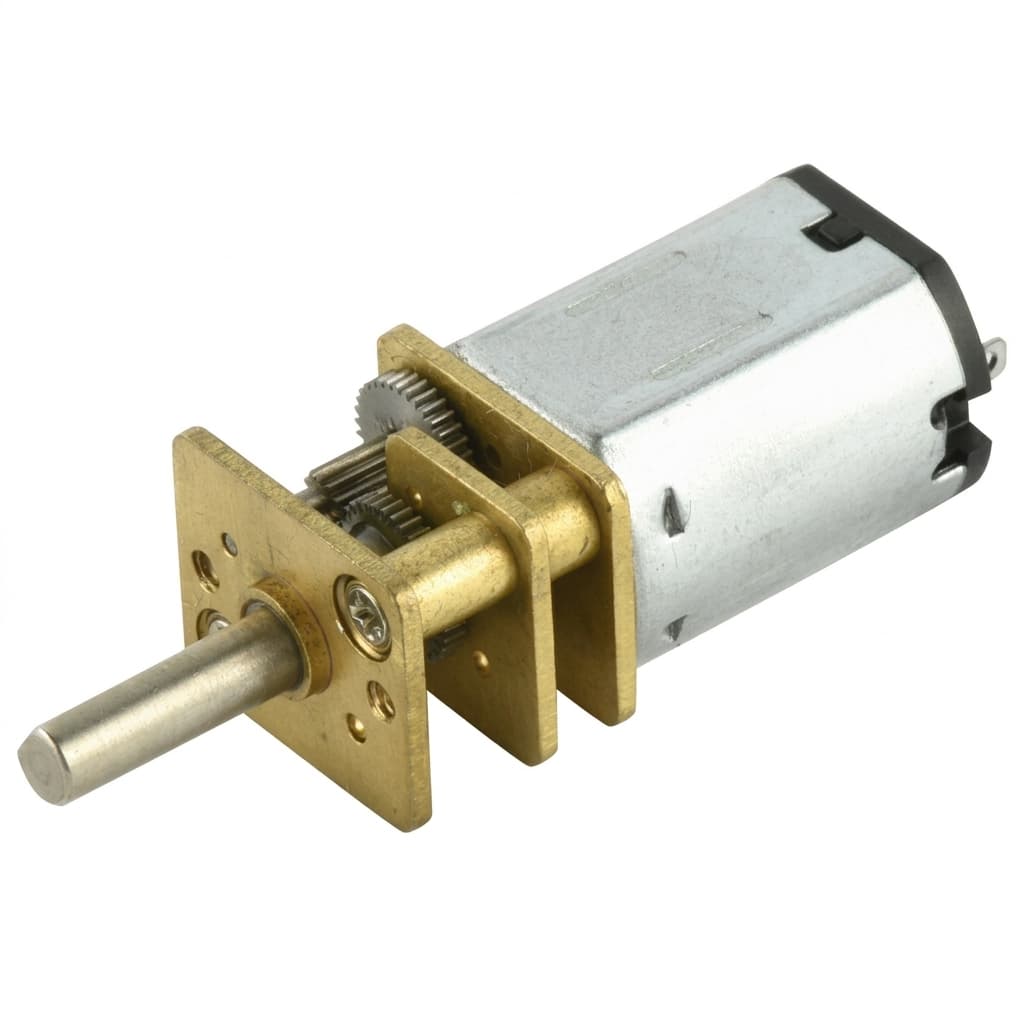

Compact N20 brushed DC gear motors for locks, meters, smart hardware, and small actuator modules that need a familiar 12mm class package.
For buyers replacing a known N20 envelope or qualifying a compact actuator where package interchangeability matters.

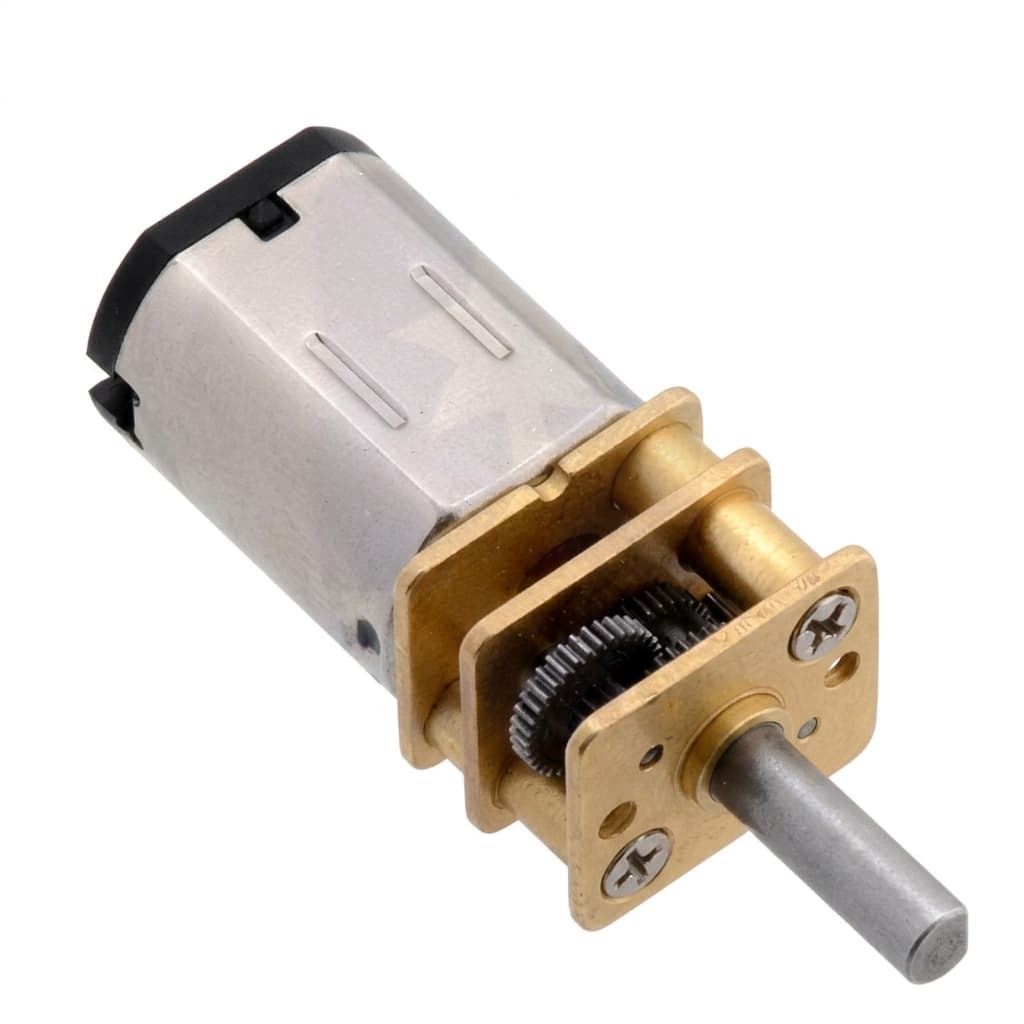

Miniature geared motors selected and tuned for acoustic-sensitive devices where gear mesh, grease, and enclosure resonance drive buyer acceptance.
For product teams where sound quality, repeatable batch noise, and smooth motion are key approval criteria.
| Product | Gearbox | Envelope | Voltage | Torque | Best Fit |
|---|---|---|---|---|---|
| Micro DC Gear Motors | Brushed DC | 6-42mm | 3-24V | Low to medium | Cost-sensitive compact OEM mechanisms that need custom ratio and interface changes. |
| Micro Planetary Gearmotors | Planetary | 6-42mm | 3-24V | High torque density | Robotics, instruments, and medical mechanisms that need compact torque density. |
| Worm Micro Gear Motors | Worm | 10-42mm | 3-24V | High holding torque | Locks, valves, latches, and safety mechanisms that need back-drive resistance. |
| Encoder Micro Gearmotors | Feedback geared | 10-42mm | 3-24V | Matched to gearbox | Closed-loop speed or position control in compact machines and instruments. |
| Micro BLDC Gear Motors | BLDC geared | 16-42mm | 6-24V | Medium to high | Long-life or continuous-duty compact equipment where brushed wear is a risk. |
| Micro Spur Gear Motors | Spur | N10-N30 / 10-30mm | 3-12V | Low to medium | High-volume consumer, smart hardware, and simple actuator mechanisms. |
| Right-Angle Micro Geared Motors | Right-angle | 10-42mm | 3-24V | Medium to high | Shallow enclosures that need 90-degree torque transfer without extra couplers. |
| Hollow-Shaft Micro Gearmotors | Hollow-shaft | 16-42mm | 6-24V | Application-defined | Rotary axes, gimbals, optical modules, and cable pass-through mechanisms. |
| N20 Micro Gear Motors | N20 spur | 12mm gearbox class | 3-12V | Low to medium | Drop-in replacement and compact actuator programs using the familiar N20 envelope. |
| Low-Noise Micro Gear Motors | Low-noise tuned | 6-42mm | 3-24V | Application-defined | Medical, lab, premium consumer, and enclosed devices where acoustic acceptance matters. |
Buyer Review Path
After narrowing the product family, open datasheet and CAD templates, validation test records, quality checks, and RFQ intake before sample approval.
A selection of commonly requested miniature geared motor assemblies from the product portfolio.
RFQ Intake
Use this intake when you have narrowed a product family but still need confirmation on torque-speed fit, shaft and mounting details, sample validation, or quote scope.
