Right-Angle Micro Geared Motors

Right-angle geared motors using bevel or worm stages to redirect torque 90 degrees in tight mechanical envelopes.

Target Buyer:For designers who have strict length constraints and must mount the motor perpendicular to the driven shaft.
Send RFQContact Engineering
Right angle gearmotor with output shaft

Capability Highlights

  • 90-degree torque output
  • Space-saving layouts
  • Custom mounting configurations

Typical Applications

  • Tight enclosures
  • Conveyor diverters
  • Robotic joints

Engineering Focus

  • Mounting footprint
  • Efficiency of the right-angle stage
  • Bearing load at the output

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Mounting envelopeRight-angle gearmotors solve shallow length constraints but require careful output height review.Maximum length, width, height, mounting plane, and shaft direction.
Gear stage choiceWorm and bevel paths trade off self-locking behavior, efficiency, cost, and noise.Back-drive requirement, target efficiency, torque, speed, and noise limit.
Output loadRight-angle shafts can see radial or axial loading that affects bearing selection.Load direction, distance from bearing, duty cycle, and shock events.
Assembly interfaceMounting holes, bracket, cable outlet, and shaft geometry can be adjusted for device assembly.CAD envelope, shaft drawing, connector route, and assembly sequence.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
Worm right-angle gearmotorShallow 90-degree actuator package3-24V reviewBack-drive and heat balanced ratioSlow to medium output speedHolding and actuator loadsOptionalOutput-side drawing by RFQ
Bevel right-angle gearmotorHigher-efficiency perpendicular output6-24V reviewEfficiency-focused ratio reviewMedium output speedSpace-constrained drive loadsOptionalMounting-envelope CAD by RFQ
Custom bracketed right-angle driveProject-defined bracket and cable route3-24V reviewApplication-specificApplication-specificBearing-load dependentOptional Hall / encoderSTEP/IGES package by project review

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Product Evidence Pack

Request the right engineering files for Right-Angle Micro Geared Motors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Right-Angle Micro Geared Motors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Maximum length and width
  • Output torque and speed
  • Required efficiency
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Mounting-envelope fit check against buyer CAD or drawings.
  • Efficiency, current, and thermal review for the selected right-angle stage.
  • Output shaft load and bearing checks where side load is present.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Space savingsApplication-specificAllows fitting a high-torque motor in a shallow enclosure.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Worm or bevel right-angle gearbox review based on self-locking and efficiency needs.
  • Custom output side, shaft profile, bracket, mounting holes, and cable outlet.
  • Bearing support review for radial or axial load at the output shaft.
  • Harness, connector, and label customization for production integration.

Validation Evidence to Request

  • Mounting-envelope fit check against buyer CAD or drawings.
  • Efficiency, current, and thermal review for the selected right-angle stage.
  • Output shaft load and bearing checks where side load is present.
  • Back-drive validation when a worm design is selected for holding behavior.

RFQ Checklist

  1. Maximum length and width
  2. Output torque and speed
  3. Required efficiency
  4. Mounting hole locations

Risk Controls

  • Thrust load on the output shaft: Upgrade to ball bearings if high axial loads are expected.

Product Gallery

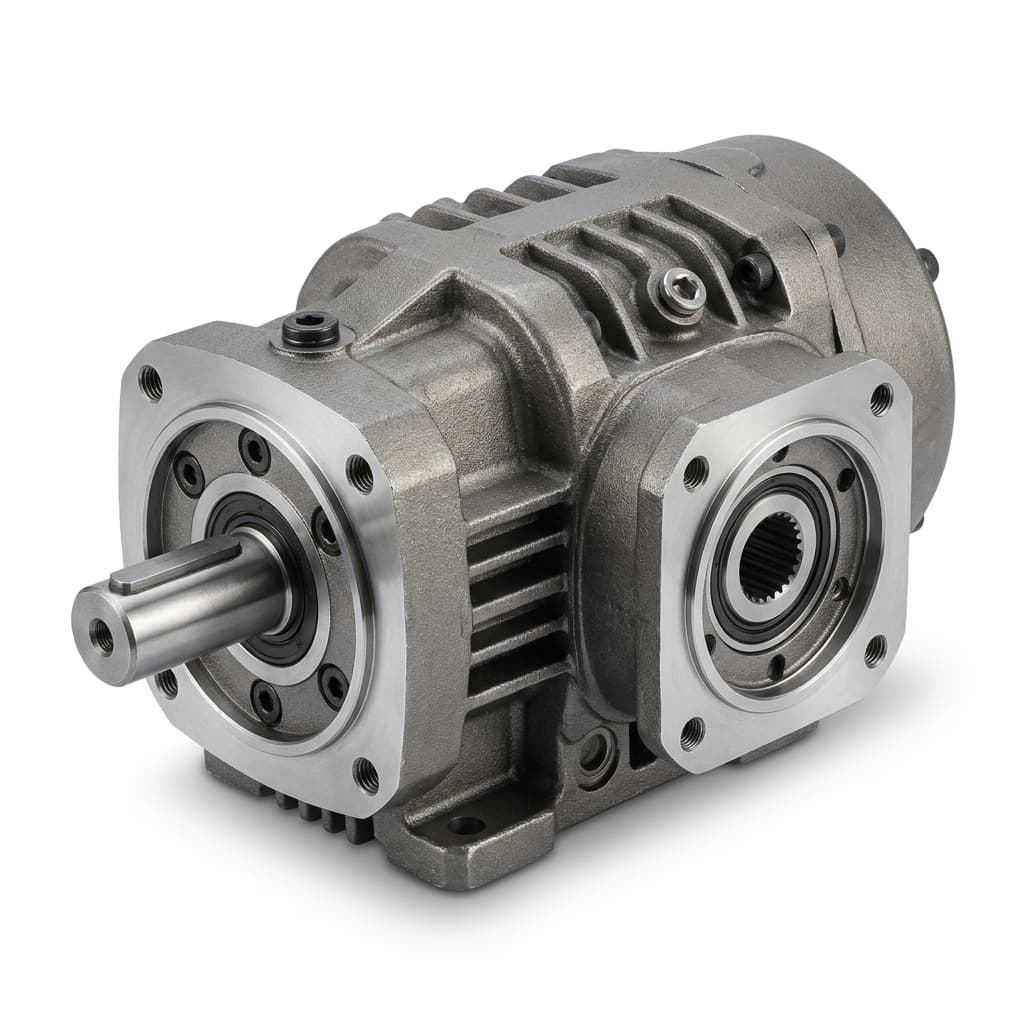

Compact right angle gearbox for actuator packaging
Compact right angle gearbox for actuator packaging
Right angle worm gear train cutaway
Right angle worm gear train cutaway

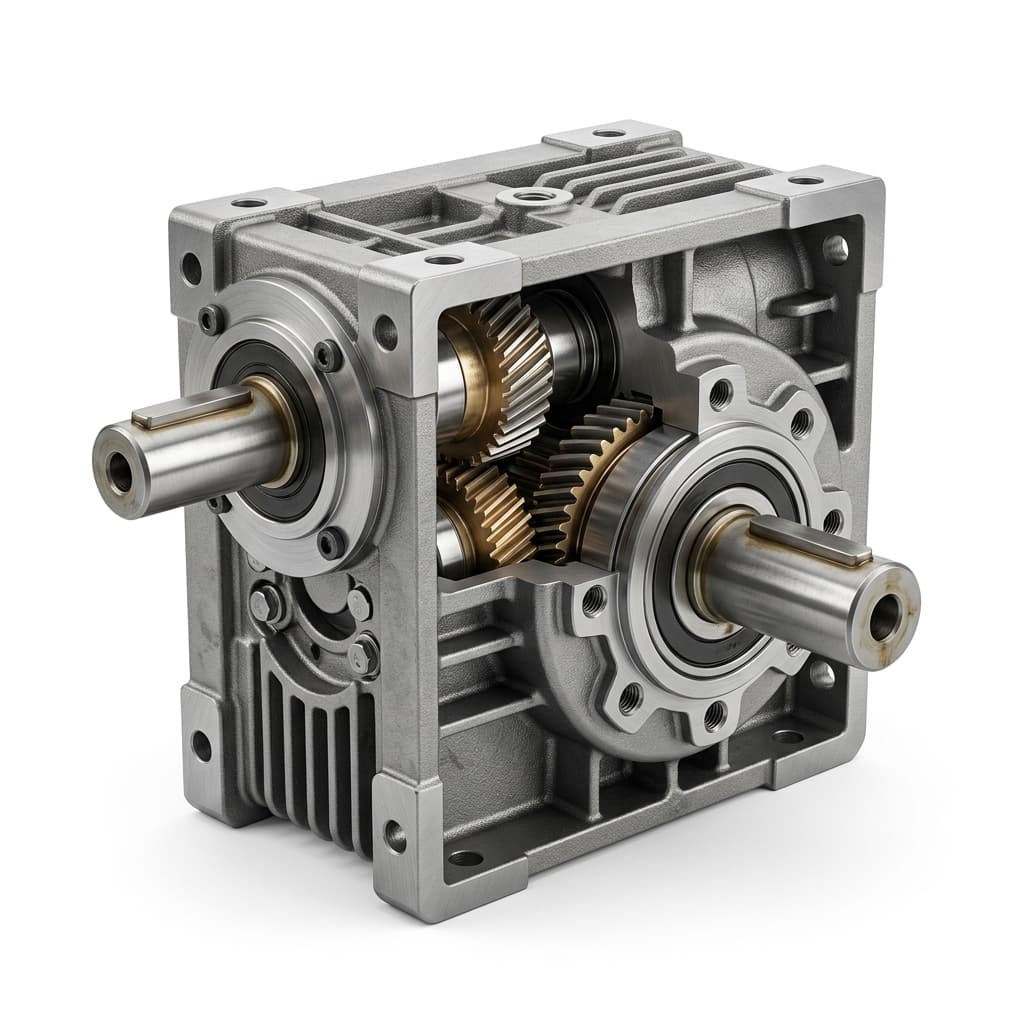

Miniature right angle geared drive assembly
Miniature right angle geared drive assembly

Buyer FAQ

Are these the same as worm gear motors?

They can use worm gears, but right-angle motors can also use bevel gears which offer higher efficiency and no self-locking.
