Quality system scope
Map buyer-requested ISO 9001, ISO 13485, IATF 16949, RoHS, REACH, and restricted-substance files to the exact motor program before sample approval.
Quality & Compliance
Audit-Ready Evidence for Micro Gear Motor OEM Programs
Plan the evidence package your procurement, quality, and engineering teams need before sample approval, pilot release, or volume production.
This page turns the quality topics from a first RFQ into a practical checklist: requested compliance files, measurable EOL tests, traceable batch records, and release gates buyers can audit.
Direct email: [email protected]
EOL inspection window
Define torque, speed, current, direction, noise, backlash, appearance, and thermal checkpoints before the control plan is frozen.
Traceable release records
Keep drawing revision, golden sample, material lot, process checkpoint, outgoing inspection, and shipment records aligned to batch IDs.
Buyer-ready evidence pack
Prepare the document set procurement and quality teams need for supplier qualification, pilot approval, and repeat-order audits.
Inspection Matrix
End-of-Line Tests to Freeze Before Quotation
EOL checks become useful only when the method, fixture, tolerance, and report format are agreed before a sample build. Use this table to align buyer and factory expectations.
| Checkpoint | Typical Method | Buyer Input Needed |
|---|---|---|
| Electrical baseline | Voltage, no-load speed, no-load current, direction check | Rated voltage, current limit, rotation direction, tolerance |
| Output performance | Rated torque-speed point, stall trend, gearbox ratio check | Load curve, torque at speed, duty cycle, acceptable drift |
| Noise and vibration | Defined distance, fixture, background noise, run-in window | dBA limit, test distance, installation orientation |
| Backlash and interface | Shaft play, gear backlash, flange fit, connector polarity | Drawing revision, shaft/flange tolerances, mating connector |
| Reliability gate | Sample run, temperature rise, duty cycle, life-test plan | Target lifetime, operating temperature, load profile |
Compliance Files
Document Scope by Buyer Qualification Stage
Certification, declaration, and report files are handled by project scope. Buyers should state the required standard, target market, product family, and documentation format in the RFQ.
| File Group | Scope | When It Matters |
|---|---|---|
| Supplier qualification file | Company profile, process overview, capability statement, facility photos | New supplier onboarding or annual vendor review |
| Material and restricted-substance declaration | RoHS/REACH request list, magnet, winding, grease, plastic, plating notes | Consumer device, medical device, EU, and regulated programs |
| Inspection and control plan | Incoming, in-process, EOL, outgoing, sampling, and pass/fail thresholds | Prototype release, pilot build, and mass-production transfer |
| Lot traceability package | Drawing revision, batch ID, inspection record, packing list, shipment log | Repeat orders, field issue review, and quality audit follow-up |
Evidence Review Packs
Quality Evidence Buyers Can Attach to Internal Approval Flows
Procurement and quality teams often need different files than the design engineer. These packs show which template to use at sample, pilot, compliance, and repeat-order gates.

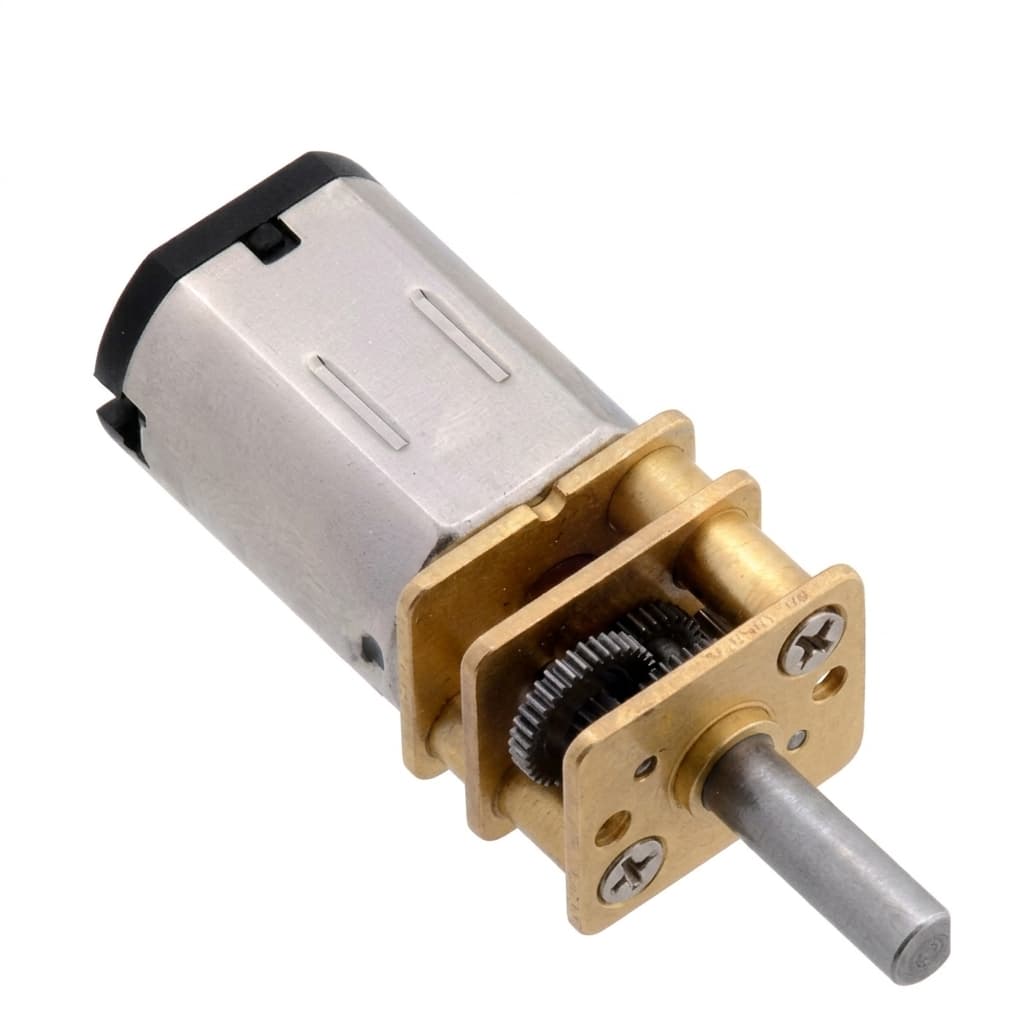

Incoming sample inspection pack
Supplier quality / buyer QA · First samples, replacement review, or drawing-change check
- Drawing revision, sample ID, shaft/flange dimensions, connector polarity, and visual condition
- Basic no-load speed, current, direction, noise, and loaded function checks
- Issue notes that can feed corrective action before pilot release
EOL release pack
Production quality / shipment release · Pilot lot, repeat order, or controlled outgoing inspection
- Voltage, speed, current, direction, loaded point, noise, backlash, and temperature rise
- Pass/fail windows agreed before quotation instead of after production
- Inspector, date, lot ID, drawing revision, and release notes for traceability
Compliance file request pack
Procurement / compliance reviewer · New supplier onboarding, EU market review, or regulated-device program
- RoHS/REACH, supplier qualification, restricted-substance, and material declaration scope
- Product family, production route, target market, and required document format
- Clear boundary that certificates and declarations must be scoped by project
Sample gate and pilot pack
Engineering, procurement, and quality · Prototype sign-off, pilot build, and mass-production readiness review
- CTQ list, golden sample owner, fixture assumptions, acceptance thresholds, and open risks
- Pilot yield notes, nonconformance items, corrective actions, and buyer approval
- Control plan, packaging, lot traceability, and change-control route before MP
Release Gates
From RFQ Review to Repeatable Production
- RFQ review: confirm CTQ items, compliance file expectations, and drawing revision ownership.
- Sample plan: lock the test method, fixture assumption, report format, and acceptance thresholds.
- Pilot run: compare sample data with process capability, yield notes, and corrective-action needs.
- Mass production: maintain outgoing records, batch traceability, packaging checks, and change-control notice path.
Download Center
Buyer Templates for Quality Evidence Requests
These files are editable templates for RFQ preparation and audit alignment. They are not substitute certificates or final inspection reports.
RFQ Quality ChecklistBuyer-side worksheet for CTQ items, compliance needs, drawing revision, and approval gates.EOL Inspection TemplateCSV template for torque, speed, current, noise, backlash, visual, and release checks.Incoming Sample Inspection ChecklistCSV checklist for first-sample drawing, dimensions, wiring, noise, loaded function, and issue review.Compliance File ChecklistDocument request list for RoHS/REACH, supplier qualification, inspection, and traceability files.Sample Gate TemplatePrototype-to-pilot approval notes for DFM, testing, corrective action, and MP readiness.
Related Qualification Pages
Technical LibraryDownload datasheet, CAD request, selection, and sample validation templates before RFQ.Applications & Case BriefsMap application risk, RFQ scenario fields, and validation proof before selecting a motor family.OEM Quality DocumentationUse when your buyer file needs a deeper document-scope discussion.Low-Noise Lifetime ValidationUse for acoustic, duty-cycle, and sample validation risk planning.Factory ProfileReview company positioning, manufacturing facilities, and buyer workflow.Contact / RFQSend CTQ targets, drawings, compliance requests, quantity, and timeline.
Quality RFQ FAQ
Are certificates guaranteed for every program?
No. Certificate and declaration files must be confirmed by product family, production route, supplier file scope, and buyer market requirement.
Can the EOL report format be customized?
Yes. Buyers can request specific fields, sampling rules, fixture assumptions, tolerance windows, and release signatures.
What makes a request easier to quote?
Send CTQ targets, drawing revisions, test conditions, target market, annual forecast, and any customer-specific audit format.
