Worm Micro Gear Motors

Right-angle worm micro gear motors for compact mechanisms that need self-locking behavior or perpendicular output.

Target Buyer:Best for mechanisms where a coaxial gearmotor is too long or the load should resist back-driving.
Send RFQContact Engineering
Compact worm gearbox with right angle output

Capability Highlights

  • Right-angle layout for tight assemblies
  • High reduction ratio options
  • Useful self-locking behavior in selected designs

Typical Applications

  • Locks
  • Dampers
  • Small positioning mechanisms

Engineering Focus

  • Self-locking and efficiency tradeoff
  • Output shaft orientation
  • Wear and lubrication under repeated start-stop cycles

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Right-angle layoutWorm gear stages redirect output by 90 degrees for shallow lock, valve, and latch cavities.Motor direction, output shaft orientation, mounting hole references, and available height.
Back-drive behaviorSelf-locking must be validated because load, vibration, lubrication, and lead angle all matter.Holding torque, shock load, vibration condition, and back-drive pass/fail target.
Duty cycle and heatLow worm efficiency can raise current and temperature under frequent starts.Run time, rest time, stall exposure, ambient temperature, and enclosure material.
Output interfaceOutput shaft side, length, flat, thread, and gear case mounting can be customized.Shaft drawing, load point distance, and connector or lead-wire route.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
Compact worm gearmotorLow-profile 90-degree output3-12V reviewHigh reduction ratio review5-300 RPM selection windowHolding and start torque defined by mechanismOpen-loop / Hall reviewOutput orientation drawing by RFQ
Self-locking worm reviewRight-angle lock or valve cavity6-24V reviewBack-drive target dependentLow-speed actuator outputCustom high-stall review up to 16800 g.cm only after sizingOptional encoder where position feedback is requiredBack-drive test plan and drawing by RFQ
Quiet worm actuatorShallow enclosure with perpendicular output3-12V reviewNoise and heat balanced ratioSlow latch / damper motionLow-noise holding loadOpen-loop typical2D mounting and shaft drawing by RFQ

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Self-locking pass/fail validation

Buyer input

Holding torque, load direction, vibration, shock, lubrication, and acceptable back-drive movement.

Engineering output

Back-drive risk note, duty-cycle limit, and test method before sample approval.

Product Evidence Pack

Request the right engineering files for Worm Micro Gear Motors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Worm Micro Gear Motors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Output direction and shaft drawing
  • Back-drive requirement
  • Load torque and start frequency
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Back-drive and position-holding checks in the real load direction.
  • Repeated start-stop temperature rise and current review.
  • Noise and wear checks after lubricant and material selection.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Output layout90-degree right angleLets compact devices redirect torque without extra couplers.
Back-drive behaviorDesign-dependentCritical for locks, latches, and position-holding applications.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Output shaft side, length, D-cut, thread, and mounting-hole customization.
  • Worm wheel material, lubrication, and ratio review for lock or valve duty cycles.
  • Harness, connector, and label packaging for production assembly lines.
  • Back-drive resistance review with the buyer mechanism instead of a catalog claim.

Validation Evidence to Request

  • Back-drive and position-holding checks in the real load direction.
  • Repeated start-stop temperature rise and current review.
  • Noise and wear checks after lubricant and material selection.
  • Mounting fit and shaft orientation inspection before batch release.

RFQ Checklist

  1. Output direction and shaft drawing
  2. Back-drive requirement
  3. Load torque and start frequency
  4. Noise and life target

Risk Controls

  • Heat buildup from low worm efficiency: Validate duty cycle, stall time, and lubricant before production approval.

Product Gallery

Cutaway worm gear reducer for compact actuators
Cutaway worm gear reducer for compact actuators
Miniature right angle worm gearbox assembly
Miniature right angle worm gearbox assembly

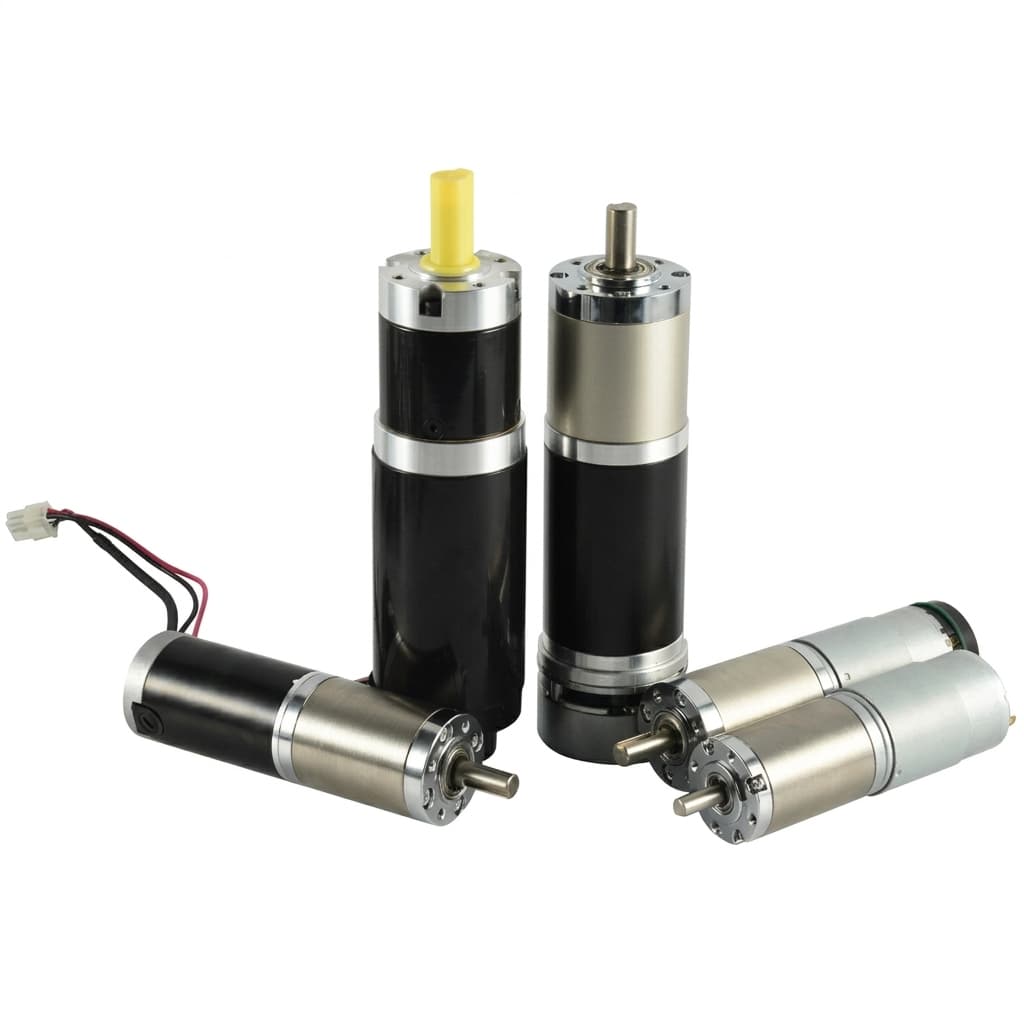

Round worm gear reducer with metal housing
Round worm gear reducer with metal housing

Buyer FAQ

Are worm micro gear motors always self-locking?

No. Self-locking depends on lead angle, material, lubrication, load, and vibration. We validate it against the real mechanism.
