Low-Noise Micro Gear Motors

Miniature geared motors selected and tuned for acoustic-sensitive devices where gear mesh, grease, and enclosure resonance drive buyer acceptance.

Target Buyer:For product teams where sound quality, repeatable batch noise, and smooth motion are key approval criteria.
Send RFQContact Engineering
Low-noise micro gear motor

Capability Highlights

  • Noise target review before sample release
  • Gear material, grease, and bearing tradeoff support
  • Validation plan for enclosure-level acoustic checks

Typical Applications

  • Medical instruments
  • Premium consumer hardware
  • Office and access-control devices

Engineering Focus

  • Noise source isolation under real load
  • Gear train, grease, bearing, and motor speed tuning
  • Sample acceptance method and measurement condition

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Acoustic targetNoise targets must include measurement distance, load, voltage, and mounting condition.dB(A) limit, distance, background noise, enclosure, and pass/fail method.
Gear train tuningGear material, ratio, grease, bearing, and motor speed are tuned together.Torque, speed, duty cycle, acceptable current, and preferred package.
Life and wearA quieter design still needs wear, lubricant, and thermal validation.Life target, cycle profile, temperature range, and sample quantity.
Batch consistencyAcoustic-sensitive programs need sample limits that can be repeated in production.Golden sample reference, inspection method, and production volume forecast.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
Low-noise N20 / spur driveSmall offset gearbox package3-12V reviewNoise and cost balanced ratioLow to medium speedEnclosed compact device loadsOptional encoderMounting and acoustic condition by RFQ
Low-noise planetary driveCoaxial 8-42mm class3-24V reviewGear material and grease tuned ratioLow to medium speedPrecision mechanisms with noise limitsOptional Hall / encoderCAD envelope and test setup by RFQ
Quiet worm / right-angle driveShallow 90-degree package3-24V reviewHeat and acoustic balanced ratioSlow actuator outputLocks, dampers, and access-control loadsOptionalMounting drawing and dB(A) method by RFQ

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Acoustic measurement method

Buyer input

dB(A) target, measurement distance, mounting condition, load, enclosure, and background noise.

Engineering output

Noise-tuning plan, golden sample path, and production inspection note.

Product Evidence Pack

Request the right engineering files for Low-Noise Micro Gear Motors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Low-Noise Micro Gear Motors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Noise limit and measurement distance
  • Loaded torque, speed, voltage, and duty cycle
  • Enclosure material and mounting condition
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Loaded and mounted acoustic checks with buyer-defined dB(A) method.
  • Torque, current, temperature, and life review after quietness tuning.
  • Comparison against golden samples before batch production.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Acoustic targetBuyer-defined dB(A)Noise acceptance changes with enclosure, mounting, load, and measurement method.
Validation conditionLoaded, mounted, and measuredPrevents catalog-only noise claims from missing the real device behavior.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Gear material, grease, bearing, ratio, and motor speed tuning for acoustic-sensitive devices.
  • Low-noise review for N20, planetary, worm, and compact DC gearmotor variants.
  • Enclosure-level acoustic validation plan before quotation and batch approval.
  • Golden sample, inspection limits, and batch consistency criteria for production.

Validation Evidence to Request

  • Loaded and mounted acoustic checks with buyer-defined dB(A) method.
  • Torque, current, temperature, and life review after quietness tuning.
  • Comparison against golden samples before batch production.
  • Production inspection notes for grease, gear train, and assembly consistency.

RFQ Checklist

  1. Noise limit and measurement distance
  2. Loaded torque, speed, voltage, and duty cycle
  3. Enclosure material and mounting condition
  4. Life target, temperature range, and sample quantity

Risk Controls

  • Quiet sample becomes noisy inside the buyer enclosure: Validate the motor in the real mounting condition and tune gear material, grease, and speed together.
  • Noise improves but life or torque margin drops: Review acoustic changes against thermal rise, wear, and loaded current before production lock.

Product Gallery

Miniature motor body for low-noise geared drives
Miniature motor body for low-noise geared drives

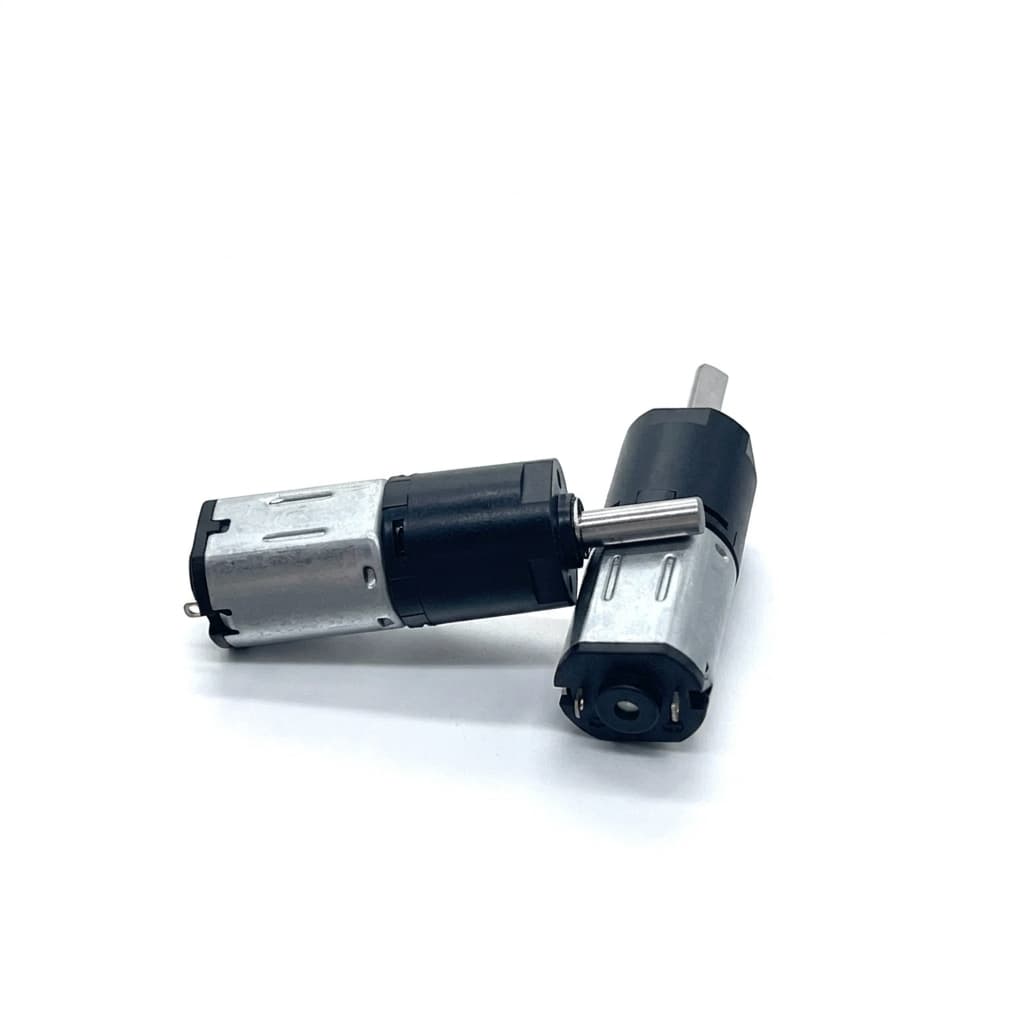

Compact gearmotor with quiet housing design
Compact gearmotor with quiet housing design

Buyer FAQ

Can you tune an existing micro gear motor for lower noise?

Yes. We review motor speed, reduction ratio, gear material, grease, bearing, and mounting support against the buyer noise target.

Do you provide noise validation before mass production?

A project-specific acoustic check can be included when the buyer defines the load, mounting, measurement distance, and pass/fail limit.
