Micro DC Gear Motors

Custom brushed DC micro gear motors for compact mechanisms that need controlled output speed and higher torque.

Target Buyer:Best for OEM teams that need a compact, economical geared motor with predictable delivery.
Send RFQContact Engineering
Micro DC Gear Motor - Model 1

Capability Highlights

  • Compact 6mm-42mm class packaging
  • Custom ratio, shaft, and harness options
  • Cost-effective for high-volume OEM programs

Typical Applications

  • Smart locks
  • Valve actuators
  • Consumer mechanisms

Engineering Focus

  • Torque and output RPM matching
  • Gear material and grease selection
  • Shaft, flange, and connector customization

Specification Window

Use these inputs to narrow the product family before sample selection, drawing review, and quotation.

ParameterSelection GuidanceBuyer Input Needed
Motor and gearbox envelope6mm-42mm diameter classes can be reviewed around the buyer mechanism before sample release.Target OD, maximum gearbox length, and mounting clearance.
Voltage and windingBrushed DC windings can be matched to battery or regulated supplies across compact device voltages.Rated voltage, allowable running current, and stall current limit.
Loaded output pointSelection should use loaded torque and RPM instead of catalog no-load speed.Target torque, output speed, duty cycle, and start frequency.
Mechanical interfaceShaft, flange, lead wire, connector, and label details can be customized from drawings.2D shaft/flange drawing, connector spec, and cable routing limit.

Engineering Data Matrix

Family-level ranges for pre-RFQ screening. Final winding, ratio, shaft, connector, and validation values are locked after drawing review.

Model ClassEnvelopeVoltageRatioSpeedTorqueFeedbackDrawing Status
6-10mm micro DC gearmotorUltra-compact cylindrical or flat package3-6V review1:5-1:300 typical review30-1000 RPM selection windowMicro load points; validate against stall riskOpen-loop or Hall reviewEnvelope drawing by RFQ
12-16mm compact DC gearmotorN10/N20-adjacent compact mechanism fit3-12V review1:10-1:1000 typical review10-600 RPM selection windowSmall locks, valves, meters, and latch loadsEncoder optional2D shaft/flange drawing by RFQ
20-42mm DC geared assemblyLarger miniature drive envelope6-24V reviewCustom ratio review5-300 RPM selection windowHigher duty or heavier mechanism loadsHall / encoder optionalProject drawing pack by RFQ

CAD, Drawing, and Curve Pack

Drawing packs are prepared against the project envelope, so the site does not publish universal CAD downloads that could mislead drop-in selection.

2D outline PDF/DWG3D STEP/IGES envelopeShaft/flange drawing review

Inputs needed before release

  • Target envelope or existing motor drawing
  • Output shaft, flange, mounting, and connector constraints
  • Voltage, loaded speed, torque, duty cycle, quantity, and destination

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

Request CAD PackRequest via WhatsAppOpen Technical Library

Performance Review Points

These checks turn a catalog choice into a quoteable sample path with measurable acceptance criteria.

Loaded torque-speed-current point

Buyer input

Target torque, output RPM, voltage, duty cycle, and current limit.

Engineering output

Recommended ratio, winding path, and sample validation point for quotation.

Thermal and duty-cycle margin

Buyer input

Run time, rest time, stall exposure, ambient temperature, and enclosure notes.

Engineering output

Risk note for heat rise, gear wear, lubricant choice, and test scope.

Mechanical interface lock

Buyer input

Shaft drawing, flange hole pattern, cable route, connector, and assembly order.

Engineering output

Drawing review notes before sample build, fixture planning, or batch inspection.

Product Evidence Pack

Request the right engineering files for Micro DC Gear Motors

These buyer-side templates connect the product family page to the technical library, quality review, and RFQ intake. They help engineering and procurement teams ask for the same files at the same approval stage.

Request This Pack

Product fit

Datasheet and RFQ Baseline

Start Micro DC Gear Motors screening with the same voltage, torque, speed, ratio, envelope, shaft, quantity, and schedule fields used by the RFQ team.

  • Target OD and maximum length
  • Rated voltage, output torque, and output speed
  • Gear ratio or load-speed target
Download Datasheet Template

Mechanical review

CAD and Drawing Release Scope

CAD and drawing packs are released after the project envelope and confidentiality requirements are confirmed.

  • 2D outline PDF/DWG
  • 3D STEP/IGES envelope
  • Shaft/flange drawing review
Open CAD Request Scope

Sample test

Torque-Speed-Current Validation

Use a shared report format before sample approval so loaded speed, torque, current, case temperature, noise, and pass/fail notes stay comparable.

  • Loaded torque-speed-current point
  • Thermal and duty-cycle margin
Download Test Report Template

Quality gate

Incoming and Release Inspection

Tie the approved sample to inspection checkpoints before pilot builds or repeat orders scale into batch production.

  • Loaded torque-speed-current checks before sample approval.
  • Start voltage, stall current, and thermal rise review against the real duty cycle.
  • Noise and life checks under buyer mounting conditions when the project requires them.
Download Inspection Checklist

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Diameter class6mm-42mmDetermines whether the drive can fit inside the buyer mechanism.
Output speed5-1000 RPMConfirms whether the selected ratio can replace extra external gearing.
Prototype lead time7-15 working daysShortens engineering validation before tooling or volume sourcing.

Commercial Scope

RFQ Pricing, Shipping, and Return Baseline

Product-family pages support engineering and sourcing decisions before a custom quotation. They do not operate as cart checkout pages with universal prices, shipping rates, or consumer return handling.

RFQ price basis
Quoted in USD after voltage, ratio, shaft, connector, validation scope, sample quantity, annual volume, destination, and trade terms are reviewed.
Quotation baseline
Commercial review baseline active from 2026-08-06; final price, lead time, and quote validity are controlled by the confirmed quotation or purchase order record.
Export shipping review
Freight cost, Incoterm, destination, packaging, and transit-time assumptions are confirmed during RFQ. This site does not publish a universal cart shipping rate for custom motors.
Custom return scope
Custom samples and production lots are not handled as consumer returns. Replacement, rework, credit, or nonconformance handling follows the confirmed quotation, purchase order, drawing revision, and inspection agreement.
Review Commercial Terms

OEM Customization Options

  • Gear ratio, winding, magnet, and grease selection for the required load-speed point.
  • D-cut, threaded, knurled, cross-drilled, extended, or hollow-adjacent shaft reviews.
  • Custom flange, mounting holes, lead wire length, connector, and private label packaging.
  • Metal, plastic, or hybrid gear train choices for cost, life, and acoustic targets.

Validation Evidence to Request

  • Loaded torque-speed-current checks before sample approval.
  • Start voltage, stall current, and thermal rise review against the real duty cycle.
  • Noise and life checks under buyer mounting conditions when the project requires them.
  • Incoming and final inspection points locked after drawing approval.

RFQ Checklist

  1. Target OD and maximum length
  2. Rated voltage, output torque, and output speed
  3. Gear ratio or load-speed target
  4. Shaft drawing, connector, quantity, and timeline

Risk Controls

  • Gear wear under shock load: Review stall torque, duty cycle, and gear material before sample release.
  • Noise above enclosure target: Match gear train, grease, bearing, and load point before acoustic testing.

Product Gallery

Micro DC Gear Motor - Model 2
Micro DC Gear Motor - Model 2

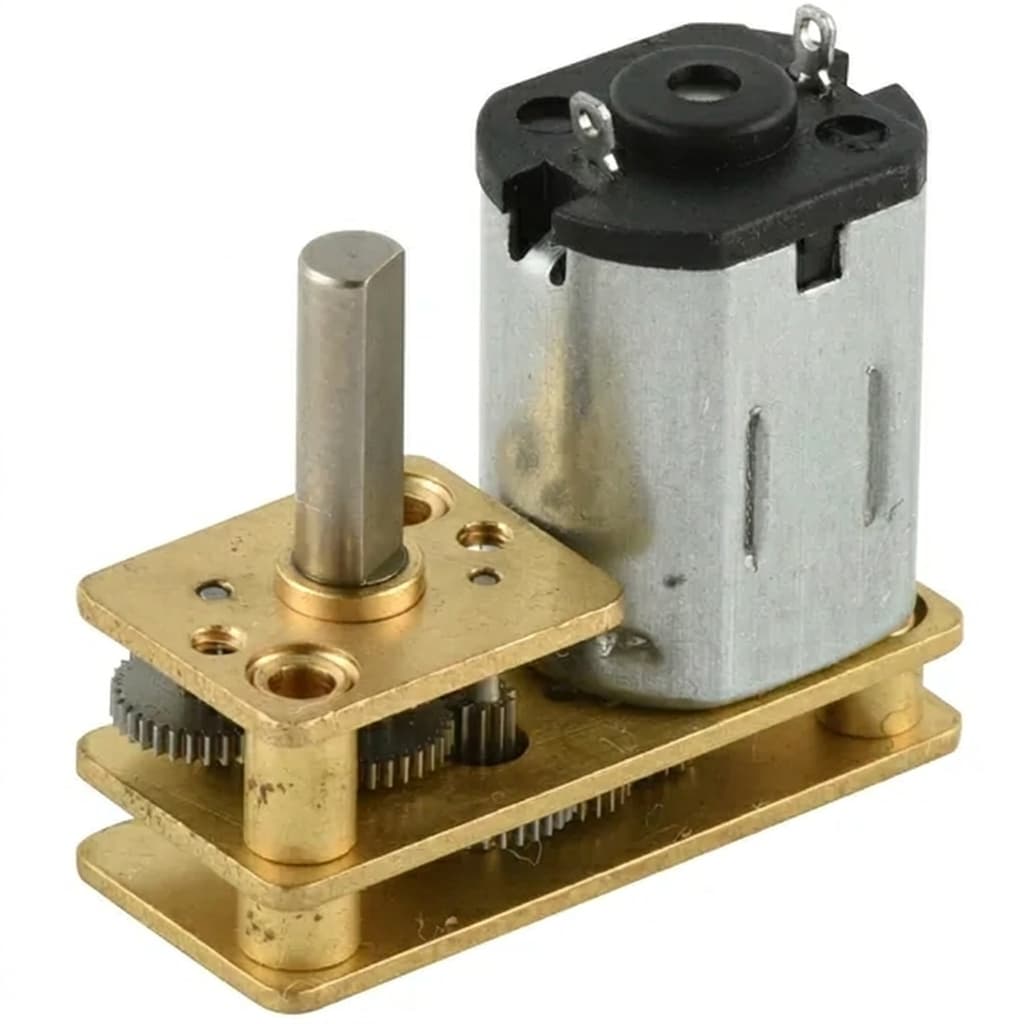

Micro DC Gear Motor - Model 3
Micro DC Gear Motor - Model 3

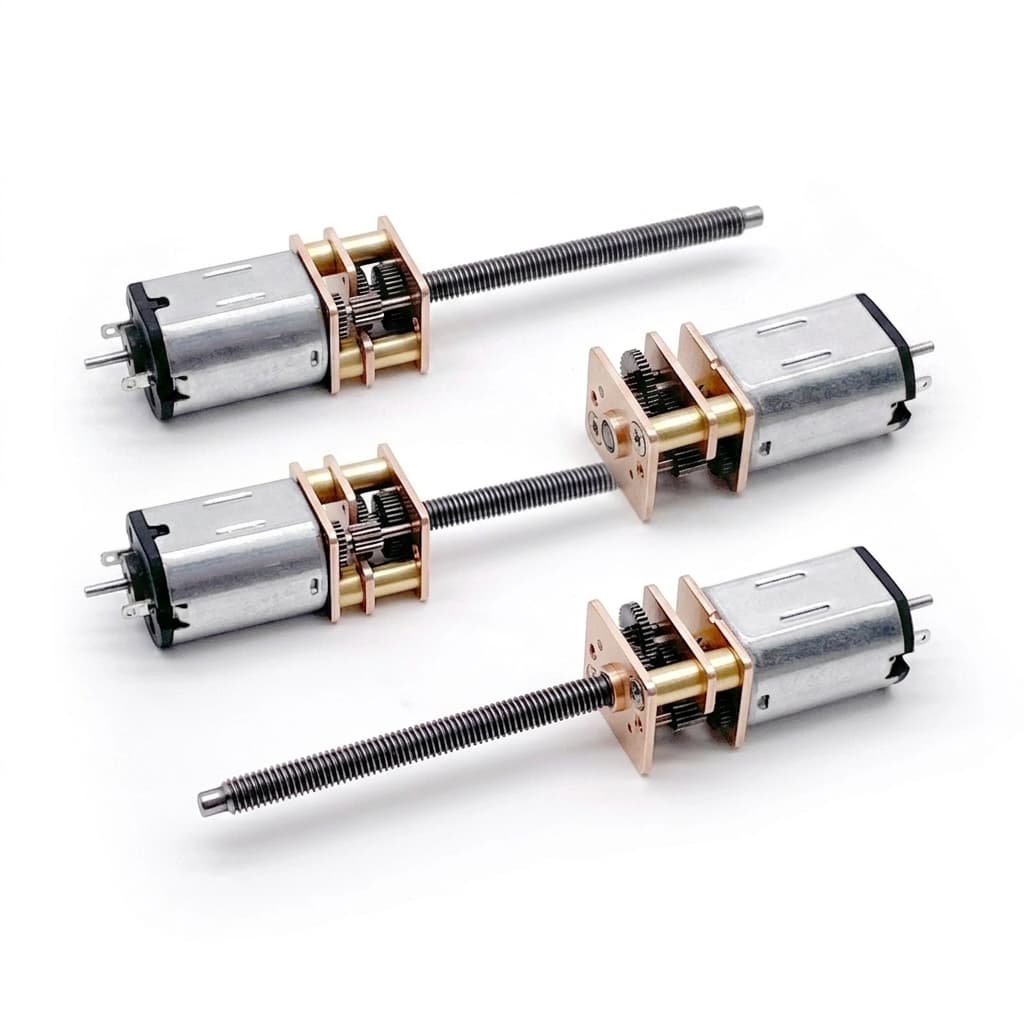

Micro DC Gear Motor - Model 4
Micro DC Gear Motor - Model 4

Buyer FAQ

Can you customize the shaft and flange?

Yes. D-cut, threaded, cross-drilled, knurled, extended, and custom flange versions can be reviewed from drawings.

Can you support prototype and volume production?

Yes. We can start with standard samples, then lock drawings, tooling, inspection points, and batch production.

Recommended Decision Path

Continue from this product family into adjacent product architectures, application notes, and OEM capability pages.

Request Engineering Review

Share the required envelope, voltage, torque, speed or ratio, shaft interface, harness, feedback, quantity, destination, and validation target. The form keeps email and WhatsApp fallbacks synchronized with the product data you enter.

Product RFQ Intake

Send Selection Data for Engineering Review

Use this form when you need model selection, CAD/drawing review, sample routing, or quotation support for this motor family.

Layer 1 - Product and Application

Layer 2 - Electrical and Mechanical Load

Layer 3 - Stage and Evidence

Email DraftWhatsApp

Attach drawings, CAD files, or test data in the follow-up email thread if they cannot be submitted through this form.
